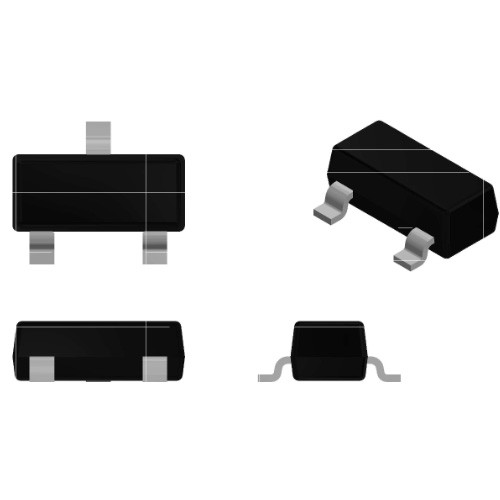

SOT-23 Zener Diode Part 9

Product Item : MMBZ5242B
Category： SOT-23 Zener Diode
Zener Voltage Rage
Maximun Zener Impedance
Maximun Reverse Current
Forward Voltage
INQUIRY EMAIL

Product Description:

Type	PD	Zener Voltage Rage				Maximun Zener Impedance			Maximun Reverse Current		Forward Voltage		MARKING
	PD	VZ@IZT			IZT	ZZT@IZT	ZZK@IZK	IZK	IR	VR	VF	IF
	(mW)	Nom(V)	Min(V)	Max(V)	(mA)	(Ω)	(Ω)	(mA)	(µA)	(V)	(V)	(mA)
MMBZ5242B	300	12	11.4	12.6	20	30	600	0.25	1	9.1	0.9	10	KH2
MMBZ5243B	300	13	12.35	13.65	9.5	13	600	0.25	0.5	9.9	0.9	10	KH3
MMBZ5244B	300	14	13.3	14.7	9	15	600	0.25	0.1	10	0.9	10	KH4
MMBZ5245B	300	15	14.25	15.75	8.5	16	600	0.25	0.1	11	0.9	10	KH5
MMBZ5246B	300	16	15.2	16.8	7.8	17	600	0.25	0.1	12	0.9	10	KJ1
MMBZ5247B	300	17	16.15	17.85	7.4	19	300	0.25	0.1	13	0.9	10	KJ2
MMBZ5248B	300	18	17.1	18.9	7	21	600	0.25	0.1	14	0.9	10	KJ3
MMBZ5249B	300	19	18.05	19.95	6.6	23	600	0.25	0.1	14	0.9	10	KJ4
MMBZ5250B	300	20	19	21	6.2	25	600	0.25	0.1	15	0.9	10	KJ5
MMBZ5251B	300	22	20.9	23.1	5.6	29	600	0.25	0.1	17	0.9	10	KK1
MMBZ5252B	300	24	22.8	25.2	5.2	33	600	0.25	0.1	18	0.9	10	KK2
MMBZ5253B	300	25	23.75	26.25	5	35	600	0.25	0.1	19	0.9	10	KK3
MMBZ5254B	300	27	25.62	28.35	5	41	600	0.25	0.1	21	0.9	10	KK4
MMBZ5255B	300	28	26.6	29.4	4.5	44	600	0.25	0.1	21	0.9	10	KK5
MMBZ5256B	300	30	28.5	31.5	4.2	49	600	0.25	0.1	23	0.9	10	KM1
MMBZ5257B	300	33	31.35	34.65	3.8	58	700	0.25	0.1	25	0.9	10	KM2
MMBZ5258B	300	36	34.2	37.8	3.4	70	700	0.25	0.1	27	0.9	10	KM3
MMBZ5259B	300	39	37.05	40.95	3.2	80	800	0.25	0.1	30	0.9	10	KM4

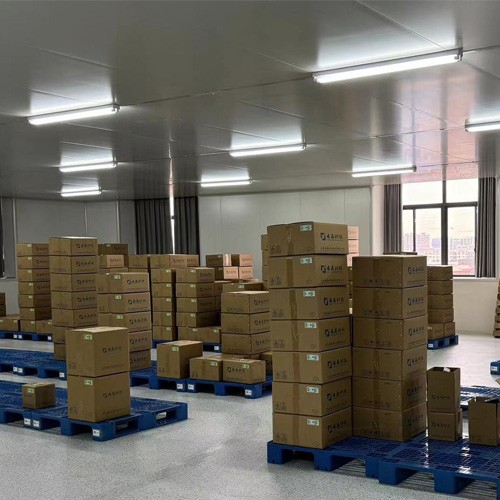

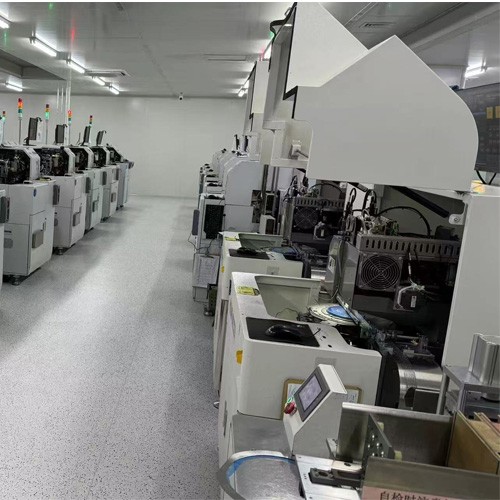

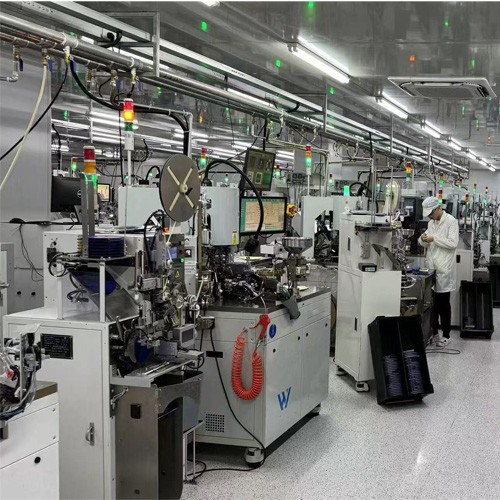

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
