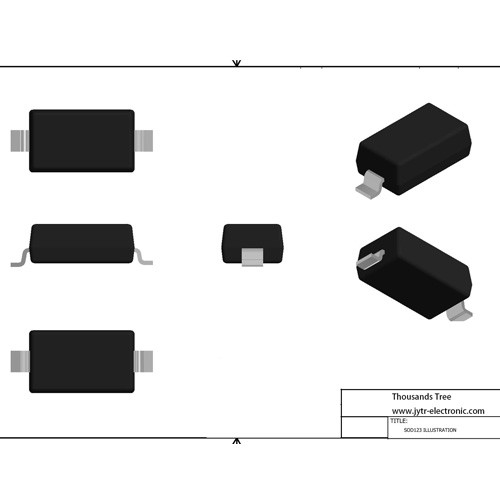

Home Products SOD-123 SOD-123 Zener Diode SOD-123 Zener Diode Part 6
| Model | PD | Zener Voltage Rage | Maximun Zener Impedance | Maximun Reverse Current | Forward Voltage | MARKING | |||||||
| VZ@IZT | IZT | ZZT@IZT | ZZK@IZK | IZK | IR | VR | VF | IF | |||||
| (mW) | Nom(V) | Min(V) | Max(V) | (mA) | (Ω) | (Ω) | (mA) | (µA) | (V) | (V) | (mA) | ||
| MMSZ5225B | 350 | 3 | 2.85 | 3.15 | 20 | 30 | 1600 | 0.25 | 50 | 1 | 0.9 | 10 | C5 |
| MMSZ5226B | 350 | 3.3 | 3.14 | 3.47 | 20 | 28 | 1600 | 0.25 | 25 | 1 | 0.9 | 10 | G1 |
| MMSZ5227B | 350 | 3.6 | 3.42 | 3.78 | 20 | 24 | 1700 | 0.25 | 15 | 1 | 0.9 | 10 | G2 |
| MMSZ5228B | 350 | 3.9 | 3.71 | 4.1 | 20 | 23 | 1900 | 0.25 | 10 | 1 | 0.9 | 10 | G3 |
| MMSZ5229B | 350 | 4.3 | 4.06 | 4.52 | 20 | 22 | 2000 | 0.25 | 5 | 1 | 0.9 | 10 | G4 |
| MMSZ5230B | 350 | 4.7 | 4.47 | 4.94 | 20 | 19 | 1900 | 0.25 | 5 | 2 | 0.9 | 10 | G5 |
| MMSZ5231B | 350 | 5.1 | 4.85 | 5.36 | 20 | 17 | 1600 | 0.25 | 5 | 2 | 0.9 | 10 | E1 |
| MMSZ5232B | 350 | 5.6 | 5.32 | 5.88 | 20 | 11 | 1600 | 0.25 | 5 | 3 | 0.9 | 10 | E2 |
| MMSZ5233B | 350 | 6 | 5.7 | 6.3 | 20 | 7 | 1600 | 0.25 | 5 | 3.5 | 0.9 | 10 | E3 |
| MMSZ5234B | 350 | 6.2 | 5.89 | 6.51 | 20 | 7 | 1000 | 0.25 | 5 | 4 | 0.9 | 10 | E4 |
| MMSZ5235B | 350 | 6.8 | 6.46 | 7.14 | 20 | 5 | 750 | 0.25 | 3 | 5 | 0.9 | 10 | E5 |
| MMSZ5236B | 350 | 7.5 | 7.13 | 7.88 | 20 | 6 | 500 | 0.25 | 3 | 6 | 0.9 | 10 | F1 |
| MMSZ5237B | 350 | 8.2 | 7.79 | 8.61 | 20 | 8 | 500 | 0.25 | 3 | 6.5 | 0.9 | 10 | F2 |
| MMSZ5238B | 350 | 8.7 | 8.27 | 9.14 | 20 | 8 | 600 | 0.25 | 3 | 6.5 | 0.9 | 10 | F3 |
| MMSZ5239B | 350 | 9.1 | 8.65 | 9.56 | 20 | 1 | 600 | 0.25 | 3 | 7 | 0.9 | 10 | F4 |
| MMSZ5240B | 350 | 10 | 9.5 | 10.5 | 20 | 17 | 600 | 0.25 | 3 | 8 | 0.9 | 10 | F5 |
| MMSZ5241B | 350 | 11 | 10.45 | 11.55 | 20 | 22 | 600 | 0.25 | 2 | 8.4 | 0.9 | 10 | H1 |
| MMSZ5242B | 350 | 12 | 11.4 | 12.6 | 20 | 30 | 600 | 0.25 | 1 | 9.1 | 0.9 | 10 | H2 |

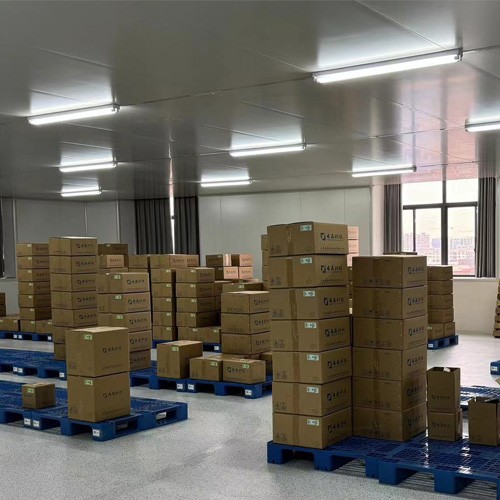

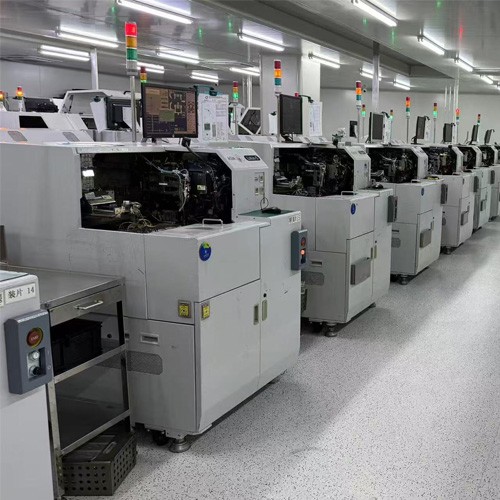

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
