Home Products SOD-123 SOD-123 Zener Diode SOD-123 Zener Diode Part 8
| Model | PD | Zener Voltage Rage | Maximun Zener Impedance | Maximun Reverse Current | Forward Voltage | MARKING | |||||||
| VZ@IZT | IZT | ZZT@IZT | ZZK@IZK | IZK | IR | VR | VF | IF | |||||
| (mW) | Nom(V) | Min(V) | Max(V) | (mA) | (Ω) | (Ω) | (mA) | (µA) | (V) | (V) | (mA) | ||
| MMSZ5231C | 350 | 5.1 | 5 | 5.2 | 20 | 17 | 1600 | 0.25 | 5 | 2 | 0.9 | 10 | 2E1 |
| MMSZ5232C | 350 | 5.6 | 5.49 | 5.71 | 20 | 11 | 1600 | 0.25 | 5 | 3 | 0.9 | 10 | 2E2 |
| MMSZ5233C | 350 | 6 | 5.88 | 6.12 | 20 | 7 | 1600 | 0.25 | 5 | 3.5 | 0.9 | 10 | 2E3 |
| MMSZ5234C | 350 | 6.2 | 6.08 | 6.32 | 20 | 7 | 1000 | 0.25 | 5 | 4 | 0.9 | 10 | 2E4 |
| MMSZ5235C | 350 | 6.8 | 6.66 | 6.94 | 20 | 5 | 750 | 0.25 | 3 | 5 | 0.9 | 10 | 2E5 |
| MMSZ5236C | 350 | 7.5 | 7.35 | 7.65 | 20 | 6 | 500 | 0.25 | 3 | 6 | 0.9 | 10 | 2F1 |
| MMSZ5237C | 350 | 8.2 | 8.04 | 8.36 | 20 | 8 | 500 | 0.25 | 3 | 6.5 | 0.9 | 10 | 2F2 |
| MMSZ5238C | 350 | 8.7 | 8.53 | 8.87 | 20 | 8 | 600 | 0.25 | 3 | 6.5 | 0.9 | 10 | 2F3 |
| MMSZ5239C | 350 | 9.1 | 8.92 | 9.28 | 20 | 10 | 600 | 0.25 | 3 | 7 | 0.9 | 10 | 2F4 |
| MMSZ5240C | 350 | 10 | 9.8 | 10.2 | 20 | 17 | 600 | 0.25 | 3 | 8 | 0.9 | 10 | 2F5 |
| MMSZ5241C | 350 | 11 | 10.78 | 11.22 | 20 | 22 | 600 | 0.25 | 2 | 8.4 | 0.9 | 10 | 2H1 |
| MMSZ5242C | 350 | 12 | 11.76 | 12.24 | 20 | 30 | 600 | 0.25 | 1 | 9.1 | 0.9 | 10 | 2H2 |
| MMSZ5243C | 350 | 13 | 12.74 | 13.26 | 9.5 | 13 | 600 | 0.25 | 0.5 | 9.9 | 0.9 | 10 | 2H3 |
| MMSZ5244C | 350 | 14 | 13.72 | 14.28 | 9 | 15 | 600 | 0.25 | 0.1 | 10 | 0.9 | 10 | 2H4 |
| MMSZ5245C | 350 | 15 | 14.7 | 15.3 | 8.5 | 16 | 600 | 0.25 | 0.1 | 11 | 0.9 | 10 | 2H5 |
| MMSZ5246C | 350 | 16 | 15.68 | 16.32 | 7.8 | 17 | 600 | 0.25 | 0.1 | 12 | 0.9 | 10 | 2J1 |
| MMSZ5248C | 350 | 18 | 17.64 | 18.36 | 7 | 21 | 600 | 0.25 | 0.1 | 14 | 0.9 | 10 | 2J3 |
| MMSZ5250C | 350 | 20 | 19.6 | 20.4 | 6.2 | 25 | 600 | 0.25 | 0.1 | 15 | 0.9 | 10 | 2J5 |
| BZT52C5V1H | 500 | 5.1 | 5.1 | 5.5 | 5 | 50 | 450 | 1 | 50 | 4.2 | 0.9 | 10 | H8 |

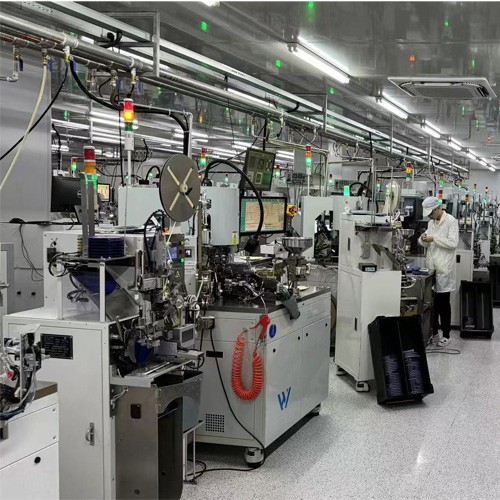

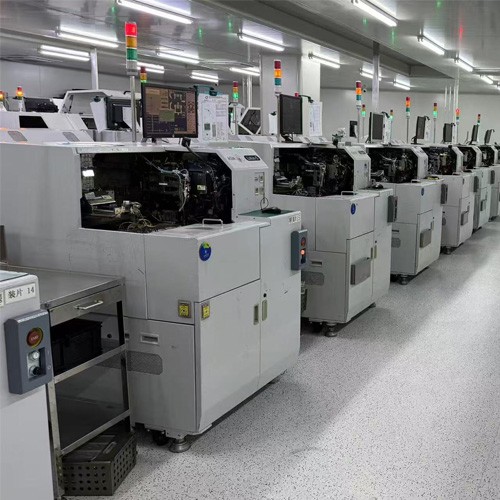

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
