SOD-123 Zener Diode Part 7

Model	PD	Zener Voltage Rage				Maximun Zener Impedance			Maximun Reverse Current		Forward Voltage		MARKING
		VZ@IZT			IZT	ZZT@IZT	ZZK@IZK	IZK	IR	VR	VF	IF
	(mW)	Nom(V)	Min(V)	Max(V)	(mA)	(Ω)	(Ω)	(mA)	(µA)	(V)	(V)	(mA)
MMSZ5243B	350	13	12.35	13.65	9.5	13	600	0.25	0.5	9.9	0.9	10	H3
MMSZ5244B	350	14	13.3	14.7	9	15	600	0.25	0.1	10	0.9	10	H4
MMSZ5245B	350	15	14.25	15.75	8.5	16	600	0.25	0.1	11	0.9	10	H5
MMSZ5246B	350	16	15.2	16.8	7.8	17	600	0.25	0.1	12	0.9	10	J1
MMSZ5248B	350	18	17.1	18.9	7	21	600	0.25	0.1	14	0.9	10	J3
MMSZ5250B	350	20	19	21	6.2	25	600	0.25	0.1	15	0.9	10	J5
MMSZ5251B	350	22	20.9	23.1	5.6	29	600	0.25	0.1	17	0.9	10	K1
MMSZ5252B	350	24	22.8	25.2	5.2	33	600	0.25	0.1	18	0.9	10	K2
MMSZ5253B	350	25	23.75	26.25	5	35	600	0.25	0.1	19	0.9	10	K3
MMSZ5254B	350	27	25.62	28.35	5	41	600	0.25	0.1	21	0.9	10	K4
MMSZ5255B	350	28	26.6	29.4	4.5	44	600	0.25	0.1	21	0.9	10	K5
MMSZ5256B	350	30	28.5	31.5	4.2	49	600	0.25	0.1	23	0.9	10	M1
MMSZ5257B	350	33	31.35	34.65	3.8	58	700	0.25	0.1	25	0.9	10	M2
MMSZ5258B	350	36	34.2	34.2	3.4	70	700	0.25	0.1	27	0.9	10	M3
MMSZ5259B	350	39	37.05	37.05	3.2	80	800	0.25	0.1	30	0.9	10	M4

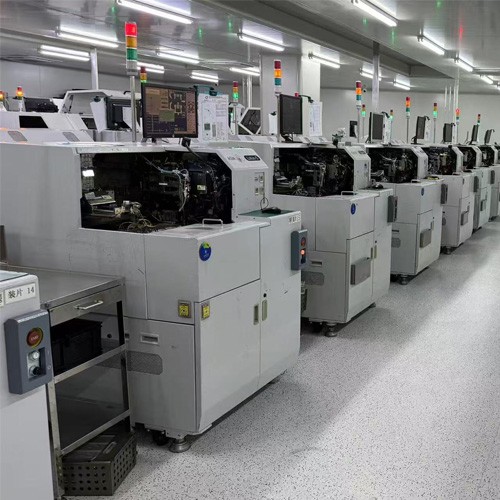

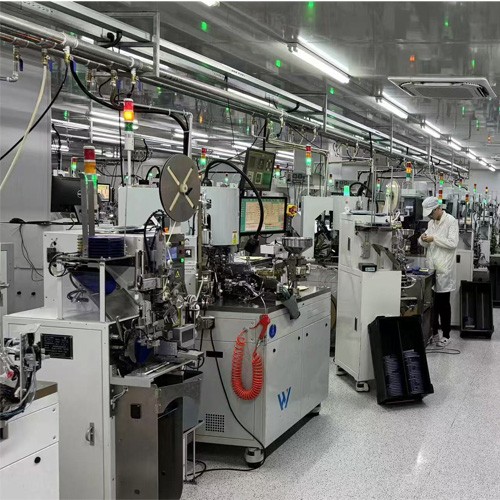

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
