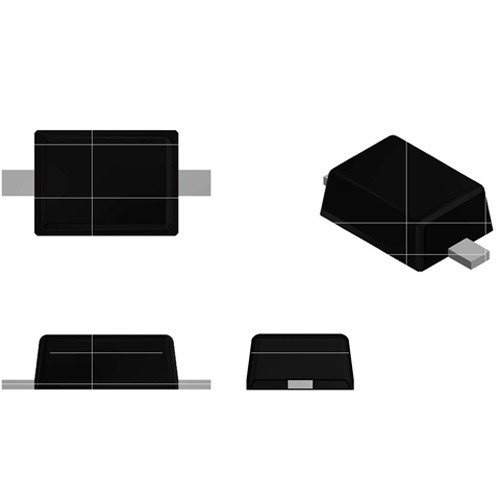

Home Products SOD-323 SOD-323 TVS Diode SOD-323 TVS Diode Part 4
| Type | VRwM(V) | IR(µA)@VRWM | VBR(V) | IR | VC@IPP | IPP | C | MARKING | |
| Max | Max | Min | Max | (μA) | V | A | (PF) | ||
| GBLC03CI | 3.3 | 0.1 | 4 | 6 | 0.5 | 5 | 1 | 1 | CC |
| GBLC05CI | 5 | 0.1 | 6 | 8 | 0.5 | 9 | 1 | 1 | AC |
| GBLC08CI | 8 | 0.1 | 8.5 | 0.5 | 13 | 1 | 1 | BC | |
| GBLC12CI | 12 | 0.1 | 13.3 | 0.5 | 18 | 1 | 1 | DC | |
| GBLC15CI | 15 | 0.1 | 16.7 | 0.5 | 22 | 1 | 1 | EC | |
| GBLC18CI | 18 | 0.1 | 20 | 0.5 | 26 | 1 | 1 | FC | |
| GBLC24CI | 24 | 0.1 | 26.7 | 0.5 | 43 | 1 | 1 | HC | |
| GBLLC03C | 3.3 | 0.1 | 4 | 6 | 0.5 | 5 | 1 | 0.6 | CA1 |
| GBLLC05C | 5 | 0.1 | 6 | 8 | 0.5 | 9 | 1 | 0.6 | CA5 |

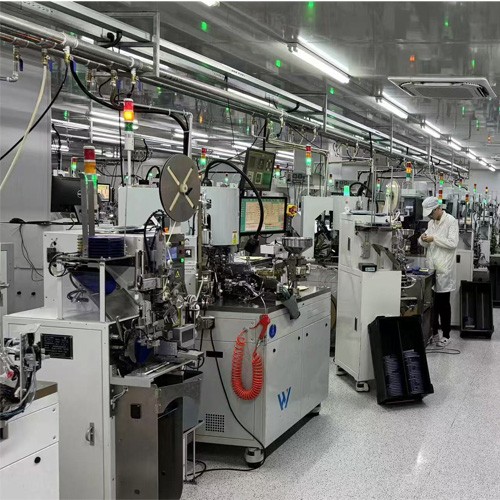

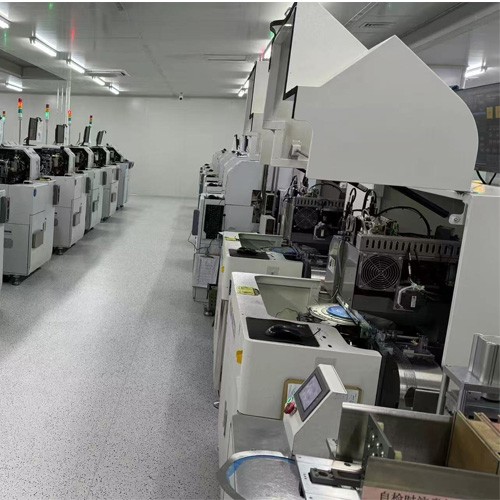

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
