LDO PART 1

Category： LDO
Polar
150-350MW
INQUIRY EMAIL

Product Description:

Part Number	VIN min	VIN max	VOUT	IOUT	IQ	Vdrop	PSRR@1KHZ	Accuracy	Package
Part Number	(V)	(V)	(V)	(mA)	(μA)	(mV)	(dB)	%	Package
CJ6211A12N	2	6	1.2	500	50	50	80	2	SOT-23
CJ6211A15N	2	6	1.5	500	50	50	80	2	SOT-23
CJ6211A18N	2	6	1.8	500	50	50	80	2	SOT-23
CJ6211A12M	2	6	1.2	500	50	50	80	2	SOT-23-3L
CJ6211A18M	2	6	1.8	500	50	50	80	2	SOT-23-3L
CJ6211A25M	2	6	2.5	500	50	50	80	2	SOT-23-3L
CJ6211A28M	2	6	2.8	500	50	50	80	2	SOT-23-3L
CJ6211A30M	2	6	3	500	50	50	80	2	SOT-23-3L
CJ6211A33M	2	6	3.3	500	50	50	80	2	SOT-23-3L

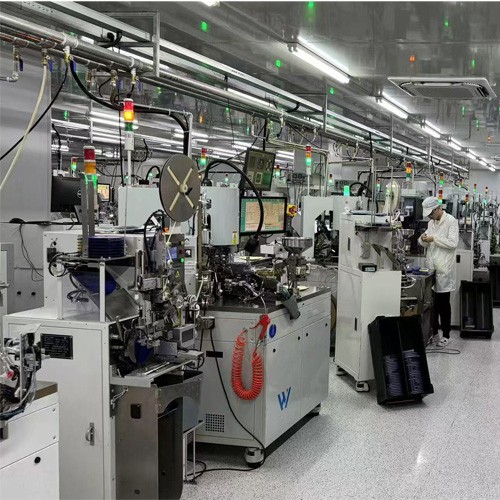

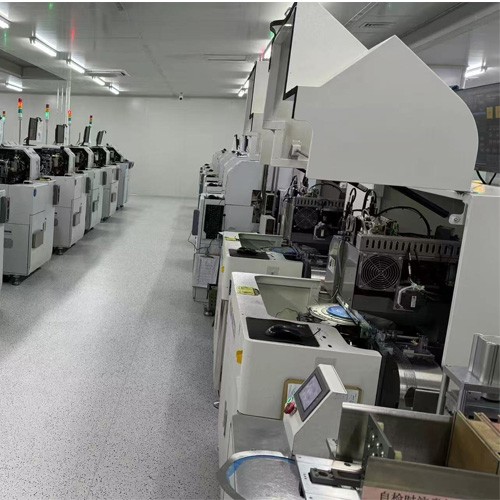

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.

Whatsapp/Mobile:+86-15306196110

Mail:Lindaxia@vip.163.com

Tags: LDO CJ6211A12N CJ6211A15N CJ6211A18N CJ6211A12M CJ6211A18M CJ6211A25M CJ6211A28M CJ6211A30M CJ6211A33M
