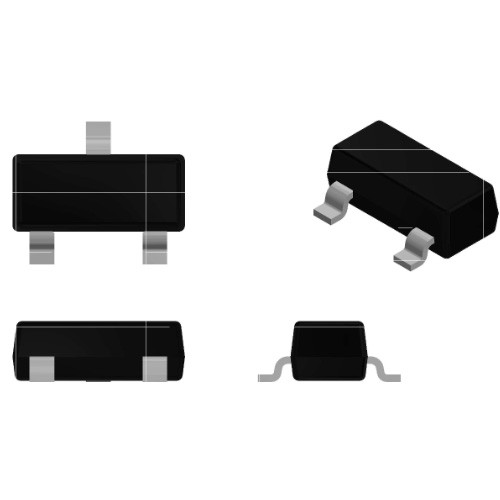

SOT-23 Transistor Part 6

Product Item : KSA1182
Category： SOT-23 Transistor
Polar
150-350MW
INQUIRY EMAIL

Product Description:

Type	Polar	PCM	IC	BVCBO	BVCEO	BVEBO	hFE				VCEsat			fT	MARKING
Type	Polar	(mW)	(mA)	(V)	(V)	(V)	Min	Max	VCE(V)	IC(mA)	(V)	IC(mA)	IB(mA)	(MHz)	MARKING
KSA1182	PNP	150	500	35	30	5	70	240	1	100	0.25	100	10	200+	F1O,F1Y
KTA1298	PNP	200	800	35	30	5	100	320	1	100	0.4	500	20	120+	IO,IY
KTA1504	PNP	150	150	50	50	5	70	400	6	2	0.3	100	10	80	ASO,ASY,ASG
KTA1505	PNP	150	500	35	30	5	70	400	1	100	0.25	100	10	200+	AZO,AZY,AZG
KTC3265	NPN	200	800	35	30	5	100	320	1	100	0.5	500	20	120+	EO,EY
KTC3875	NPN	150	150	60	50	5	70	700	6	2	0.25	100	10	80	ALO,ALY,ALG,ALL
KTC3876	NPN	200	500	35	30	5	70	400	1	100	0.25	100	10	300+	WO,WY,WG
KTC3879	NPN	150	50	35	30	4	40	240	12	2	0.4	10	1	100	RR,RO,RY
KTC4075	NPN	100	150	60	50	5	70	700	6	2	0.25	100	10	80	LO,LY.LGR.LBL
KTD1304	NPN	200	300	25	20	12	200	1000	2	4	0.25	100	10	60+	MAX
M28S	NPN	200	1000	40	20	6	300	1000	1	100	0.55	600	20	100	28S
M8050	NPN	200	800	40	25	6	80	400	1	100	0.5	800	80	150	Y11
M8550	PNP	200	800	40	25	6	85	400	1	100	0.5	800	80	150	Y21

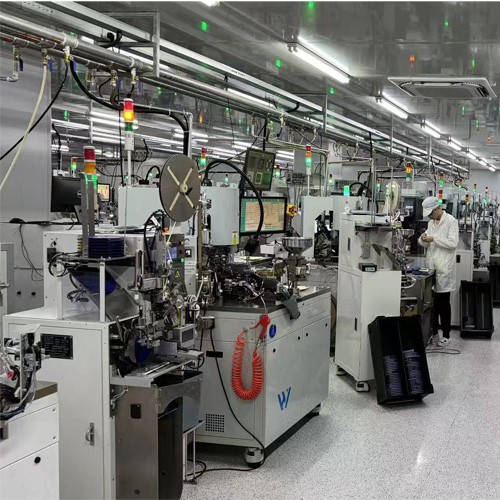

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.

Whatsapp/Mobile:+86-15306196110

Mail:Lindaxia@vip.163.com

Tags: KSA1182 KTA1298 KTA1504 KTA1505 KTC3265 KTC3875 KTC3876 KTC3879 KTC4075 KTD1304 M28S M8050 M8550
