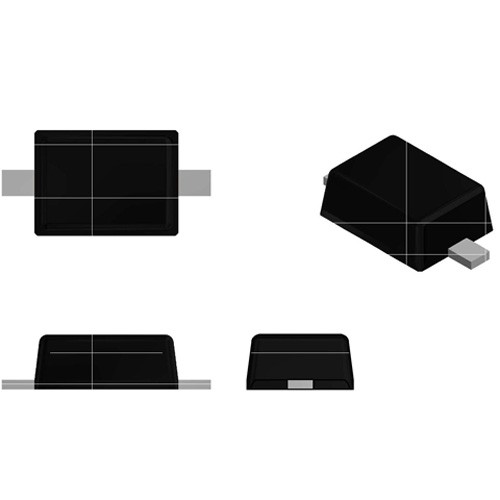

Home Products SOD-323 SOD-323 TVS Diode SOD-323 TVS Diode Part 1
| Type | VRwM(V) | IR(µA)@VRWM | VBR(V) | IR | VC@IPP | IPP | C | MARKING | |
| Max | Max | Min | Max | (μA) | V | A | (PF) | ||
| ASD03 | 3.3 | 1 | 4 | 6 | 1 | 6.5 | 5 | 350 | 03W |
| ASD05 | 5 | 0.5 | 6 | 1 | 9.8 | 5 | 300 | 05W | |
| ASD05C | 5 | 1 | 6 | 1 | 9.5 | 36 | 200 | 05 | |
| ASD08 | 8 | 0.5 | 8.5 | 1 | 13.4 | 1 | 180 | 08W | |
| ASD08C | 8 | 1 | 8.5 | 1 | 11 | 5 | 180 | 8 | |
| ASD12 | 12 | 0.5 | 13.3 | 1 | 19 | 5 | 150 | 12W | |
| ASD12C | 12 | 0.5 | 13.3 | 1 | 18 | 5 | 100 | 12 | |
| ASD15 | 15 | 0.2 | 16.7 | 1 | 20 | 1 | 100 | 15W | |
| ASD15C | 15 | 16.7 | 1 | 100 | 15 | ||||
| ASD24 | 24 | 0.2 | 26.7 | 1 | 43 | 1 | 70 | 24W | |
| ASD24C | 24 | 0.2 | 26.7 | 1 | 40 | 1 | 50 | 24 | |
| ASD36 | 36 | 0.2 | 38 | 1 | 60 | 6 | 70 | 36W | |
| ASD36C | 36 | 0.2 | 38 | 1 | 40 | 1 | 30 | 36 | |

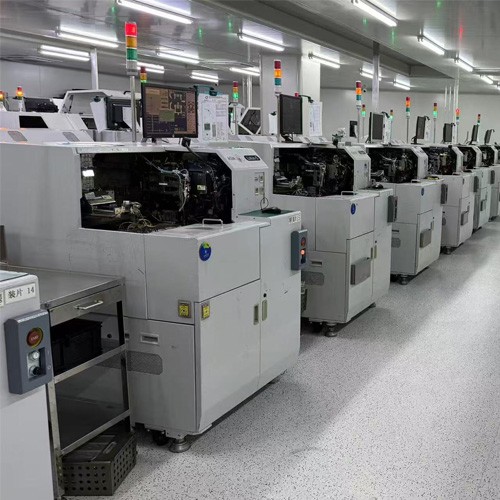

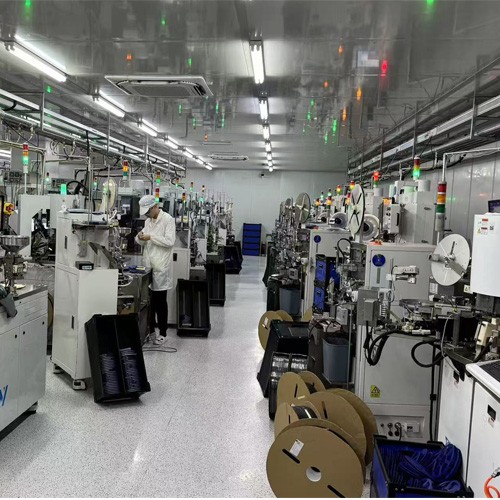

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
