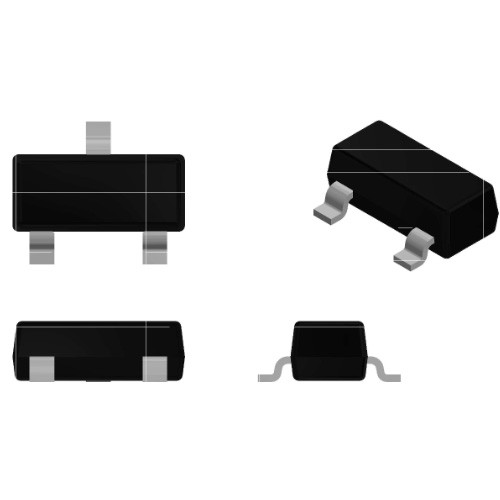

Home Products SOT-23 SOT-23 TVS Diode SOT-23 TVS Diode Part 1
| Type | VRwM(V) | IR(µA)@VRWM | VBR(V) | IR | VC@IPP | IPP | C | MARKING | |
| Max | Max | Min | Max | (μA) | V | A | (PF) | ||
| CESD12VAP | 12 | 1 | 13.3 | 16.5 | 1 | 24 | 9 | 45+ | 12M |
| CESD12VCP | 12 | 1 | 13.3 | 16.5 | 1 | 24 | 9 | 45+ | 12L |
| CESD3V3AP | 3.3 | 10 | 5 | 5.9 | 1 | 13 | 16 | 120+ | 3M3 |
| CESD5V0AP | 5 | 10 | 6.2 | 7.3 | 1 | 13 | 13 | 95+ | 5M |
| CESDBLC5V0AP | 5 | 0.1 | 5.8 | 8 | 1 | 10 | 5 | 12+ | BL5A |
| ESDU5V0C2 | 5 | 1 | 6 | 1 | 25 | 3.5 | 0.8 | U5C2 | |
| ESDKV5V0C1 | 5 | 1 | 6 | 8 | 1 | 26 | 25 | 2 | V5C1 |
| ESD36VAP | 36 | 1 | 40 | 48 | 1 | 80 | 3 | 30+ | 36M |
| NUP2105L | 24 | 0.1 | 26.2 | 0.1 | 8 | 30 | 27DM | ||
Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
