| Part Number | VIN min | VIN max | VOUT | IOUT | IQ | Vdrop | PSRR@1KHZ | Accuracy | Package |
| (V) | (V) | (V) | (mA) | (μA) | (mV) | (dB) | % | ||
| CJ6300BM | 1.8 | 7 | ADJ | 500 | 45 | 110 | 50 | 2 | SOT-23-5L |
| CJ6330A18M | 2.5 | 18 | 1.8 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330A25M | 2.5 | 18 | 2.5 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330A28M | 2.5 | 18 | 2.8 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330A30M | 2.5 | 18 | 3 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330A33M | 2.5 | 18 | 3.3 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330A36M | 2.5 | 18 | 3.6 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330A50M | 2.5 | 18 | 5 | 300 | 2 | 160 | 65 | 2 | SOT-23-3L |
| CJ6330B12M | 2.5 | 18 | 1.2 | 300 | 2 | 160 | 65 | 2 | SOT-23-5L |
| CJ6330B28M | 2.5 | 18 | 2.8 | 300 | 2 | 160 | 65 | 2 | SOT-23-5L |
| CJ6330B30M | 2.5 | 18 | 3 | 300 | 2 | 160 | 65 | 2 | SOT-23-5L |
| CJ6330B33M | 2.5 | 18 | 3.3 | 300 | 2 | 160 | 65 | 2 | SOT-23-5L |
| CJ6330B36M | 2.5 | 18 | 3.6 | 300 | 2 | 160 | 65 | 2 | SOT-23-5L |
| CJ6330B50M | 2.5 | 18 | 5 | 300 | 2 | 160 | 65 | 2 | SOT-23-5L |

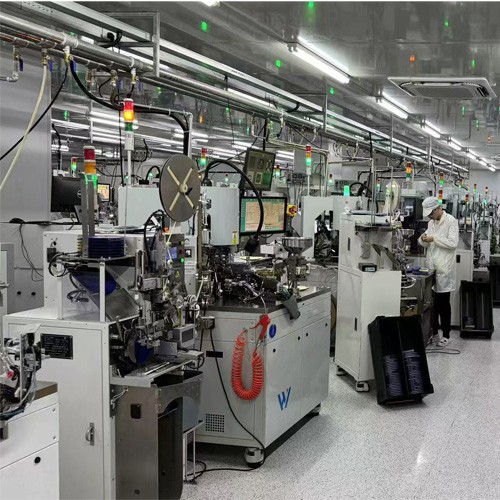

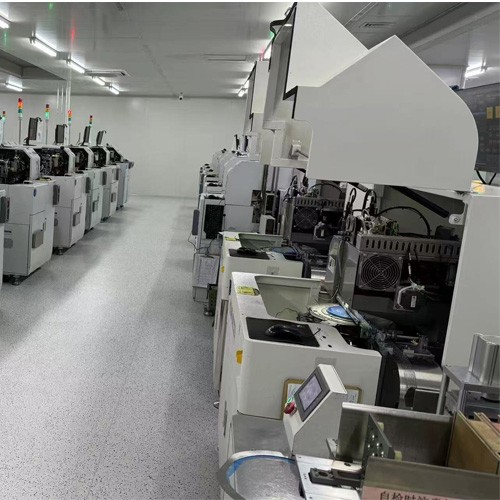

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
