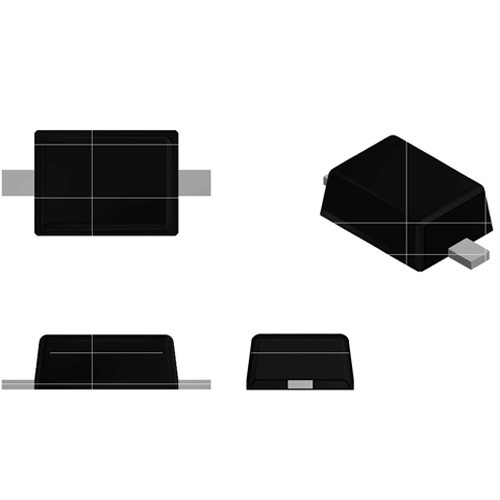

Home Products SOD-323 SOD-323 Zener Diode SOD-323 Zener Diode Part 5
| Type | PD | Zener Voltage Rage | Maximun Zener Impedance | Maximun Reverse Current | Forward Voltage | MARKING | |||||||
| VZ@IZT | IZT | ZZT@IZT | ZZK@IZK | IZK | IR | VR | VF | IF | |||||
| (mW) | Nom(V) | Min(V) | Max(V) | (mA) | (Ω) | (Ω) | (mA) | (µA) | (V) | (V) | (mA) | ||
| MMSZ5240BS | 200 | 10 | 9.5 | 10.5 | 20 | 17 | 600 | 0.25 | 3 | 8 | 0.9 | 10 | F5 |
| MMSZ5241BS | 200 | 11 | 10.45 | 11.55 | 20 | 22 | 600 | 0.25 | 2 | 8.4 | 0.9 | 10 | H1 |
| MMSZ5242BS | 200 | 12 | 11.4 | 12.6 | 20 | 30 | 600 | 0.25 | 1 | 9.1 | 0.9 | 10 | H2 |
| MMSZ5243BS | 200 | 13 | 12.35 | 13.65 | 9.5 | 13 | 600 | 0.25 | 0.5 | 9.9 | 0.9 | 10 | H3 |
| MMSZ5244BS | 200 | 14 | 13.3 | 14.7 | 9 | 15 | 600 | 0.25 | 0.1 | 10 | 0.9 | 10 | H4 |
| MMSZ5245BS | 200 | 15 | 14.25 | 15.75 | 8.5 | 16 | 600 | 0.25 | 0.1 | 11 | 0.9 | 10 | H5 |
| MMSZ5246BS | 200 | 16 | 15.2 | 16.8 | 7.8 | 17 | 600 | 0.25 | 0.1 | 12 | 0.9 | 10 | J1 |
| MMSZ5248BS | 200 | 18 | 17.1 | 18.9 | 7 | 21 | 600 | 0.25 | 0.1 | 14 | 0.9 | 10 | J3 |
| MMSZ5250BS | 200 | 20 | 19 | 21 | 6.2 | 25 | 600 | 0.25 | 0.1 | 15 | 0.9 | 10 | J5 |
| MMSZ5251BS | 200 | 22 | 20.9 | 23.1 | 5.6 | 29 | 600 | 0.25 | 0.1 | 17 | 0.9 | 10 | K1 |
| MMSZ5252BS | 200 | 24 | 22.8 | 25.2 | 5.2 | 33 | 600 | 0.25 | 0.1 | 18 | 0.9 | 10 | K2 |
| MMSZ5253BS | 200 | 25 | 23.75 | 26.25 | 5 | 35 | 600 | 0.25 | 0.1 | 19 | 0.9 | 10 | K3 |
| MMSZ5254BS | 200 | 27 | 25.62 | 28.35 | 5 | 41 | 600 | 0.25 | 0.1 | 21 | 0.9 | 10 | K4 |
| MMSZ5255BS | 200 | 28 | 26.6 | 29.4 | 4.5 | 44 | 600 | 0.25 | 0.1 | 21 | 0.9 | 10 | K5 |
| MMSZ5256BS | 200 | 30 | 28.5 | 31.5 | 4.2 | 49 | 600 | 0.25 | 0.1 | 23 | 0.9 | 10 | M1 |
| MMSZ5257BS | 200 | 33 | 31.35 | 34.65 | 3.8 | 58 | 700 | 0.25 | 0.1 | 25 | 0.9 | 10 | M2 |
| MMSZ5258BS | 200 | 36 | 34.2 | 37.8 | 3.4 | 70 | 700 | 0.25 | 0.1 | 27 | 0.9 | 10 | M3 |
| MMSZ5259BS | 200 | 39 | 37.05 | 40.95 | 3.2 | 80 | 800 | 0.25 | 0.1 | 30 | 0.9 | 10 | M4 |

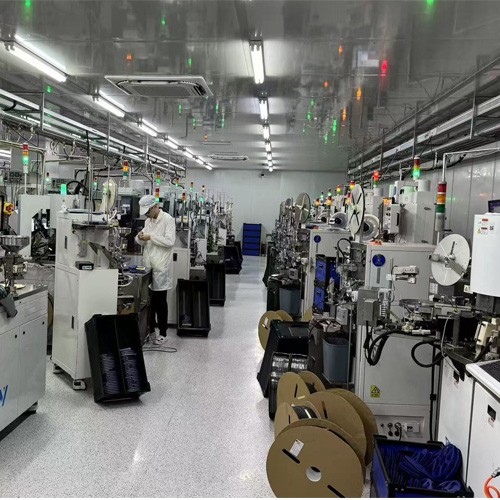

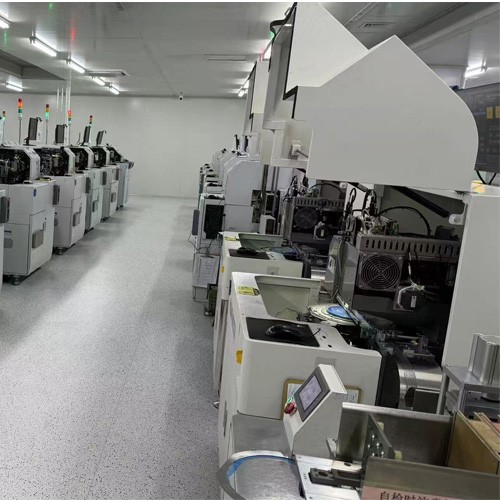

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
