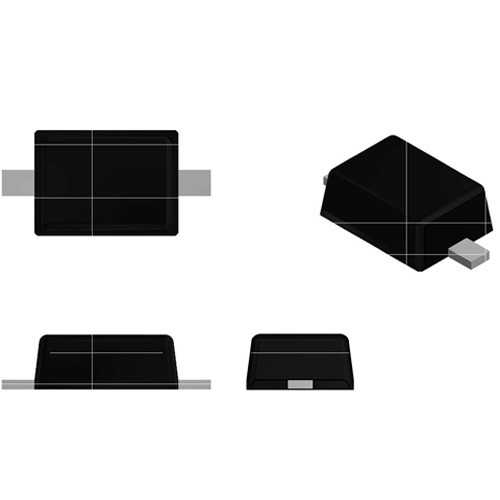

Home Products SOD-323 SOD-323 Diode SOD-323 Diode Part 3
| Model | PD | VR | IFM | IO | IR | VF | trr | MARKING | |||
| (mW) | (V) | IR(µA) | (mA) | (mA) | (µA） | VR(V) | (V) | IF(mA) | (ns) | ||
| MBRX0520 | 250 | 20 | 1000 | 500 | 80 | 20 | 0.45 | 500 | 2• | ||
| MBRX0530 | 250 | 30 | 1000 | 500 | 80 | 30 | 0.55 | 500 | 3• | ||
| MBRX0540 | 250 | 40 | 1000 | 500 | 80 | 40 | 0.55 | 500 | 4• | ||
| MBRX0560 | 250 | 60 | 1000 | 500 | 80 | 60 | 0.7 | 500 | 6• | ||
| MMDL914 | 200 | 100 | 100 | 200 | 5 | 75 | 1 | 10 | 4 | 5D | |
| RB500V-40 | 200 | 40 | 1000 | 100 | 1 | 10 | 0.45 | 10 | 2 | ||
| RB501V-40 | 200 | 40 | 100 | 100 | 30 | 10 | 0.55 | 100 | 4 | ||
| RB550V-30 | 200 | 30 | 1000 | 1000 | 30 | 10 | 0.52 | 1000 | SS | ||
| RB551V-30 | 200 | 30 | 1000 | 500 | 100 | 20 | 0.47 | 500 | D | ||
| RB551V-40 | 200 | 40 | 100 | 500 | 100 | 40 | 0.47 | 500 | D4 | ||
| RB751V-40 | 200 | 40 | 1000 | 30 | 0.5 | 30 | 0.37 | 1 | 5 | ||
| SD101AWS | 200 | 60 | 10 | 15 | 0.2 | 50 | 1 | 15 | 1 | S1 | |
| SD101BWS | 200 | 50 | 10 | 15 | 0.2 | 40 | 0.95 | 15 | 1 | S2 | |
| SD101CWS | 200 | 40 | 10 | 15 | 0.2 | 30 | 0.9 | 15 | 1 | S31 | |
| SD103AWS | 200 | 40 | 10 | 350 | 5 | 30 | 0.6 | 200 | 10 | S4 | |
| SD103BWS | 200 | 30 | 10 | 350 | 5 | 20 | 0.6 | 200 | 10 | S51 | |
| SD103CWS | 200 | 20 | 10 | 350 | 5 | 10 | 0.6 | 200 | 10 | S6 | |
| SD106WS | 250 | 30 | 100 | 200 | 5 | 30 | 0.55 | 200 | S21 | ||
| SD107WS | 250 | 30 | 100 | 100 | 1 | 25 | 0.8 | 100 | SG | ||

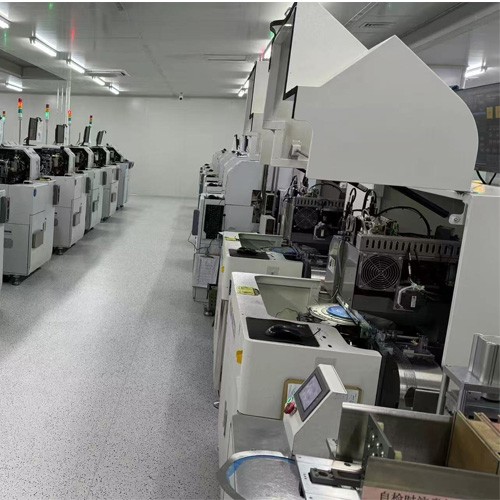

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
