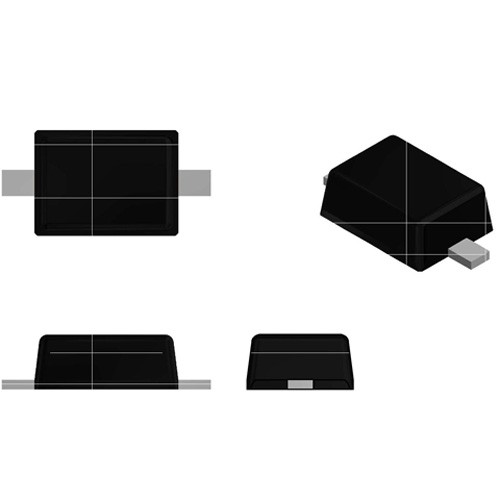

Home Products SOD-323 SOD-323 Zener Diode SOD-323 Zener Diode Part 1
| Type | PD | Zener Voltage Rage | Maximun Zener Impedance | Maximun Reverse Current | Forward Voltage | MARKING | |||||||
| VZ@IZT | IZT | ZZT@IZT | ZZK@IZK | IZK | IR | VR | VF | IF | |||||
| (mW) | Nom(V) | Min(V) | Max(V) | (mA) | (Ω) | (Ω) | (mA) | (µA) | (V) | (V) | (mA) | ||
| BZT52B5V1S | 200 | 5.1 | 5 | 5.2 | 5 | 60 | 480 | 1 | 2 | 2 | 0.9 | 10 | 2W8 |
| BZT52B5V6S | 200 | 5.6 | 5.49 | 5.71 | 5 | 40 | 400 | 1 | 1 | 2 | 0.9 | 10 | 2W9 |
| BZT52B6V2S | 200 | 6.2 | 6.08 | 6.32 | 5 | 10 | 150 | 1 | 3 | 4 | 0.9 | 10 | 2WA |
| BZT52B6V8S | 200 | 6.8 | 6.66 | 6.94 | 5 | 15 | 80 | 1 | 2 | 4 | 0.9 | 10 | 2WB |
| BZT52B7V2S | 200 | 7.5 | 7.35 | 7.65 | 5 | 15 | 80 | 1 | 1 | 5 | 0.9 | 10 | 2WC |
| BZT52B8V2S | 200 | 8.2 | 8.04 | 8.36 | 5 | 15 | 80 | 1 | 0.7 | 5 | 0.9 | 10 | 2WD |
| BZT52B9V1S | 200 | 9.1 | 8.92 | 9.28 | 5 | 15 | 100 | 1 | 0.5 | 6 | 0.9 | 10 | 2WE |
| BZT52B10S | 200 | 10 | 9.8 | 10.2 | 5 | 20 | 150 | 1 | 0.2 | 7 | 0.9 | 10 | 2WF |
| BZT52B11S | 200 | 11 | 10.78 | 11.22 | 5 | 20 | 150 | 1 | 0.1 | 8 | 0.9 | 10 | 2WG |
| BZT52B12S | 200 | 12 | 11.76 | 12.24 | 5 | 25 | 150 | 1 | 0.1 | 8 | 0.9 | 10 | 2WH |
| BZT52B13S | 200 | 13 | 12.74 | 13.26 | 5 | 30 | 170 | 1 | 0.1 | 8 | 0.9 | 10 | 2WI |
| BZT52B15S | 200 | 15 | 14.7 | 15.3 | 5 | 30 | 200 | 1 | 0.1 | 10.5 | 0.9 | 10 | 2WJ |
| BZT52B16S | 200 | 16 | 15.68 | 16.32 | 5 | 40 | 200 | 1 | 0.1 | 11.2 | 0.9 | 10 | 2WK |
| BZT52B18S | 200 | 18 | 17.64 | 18.36 | 5 | 45 | 225 | 1 | 0.1 | 12.6 | 0.9 | 10 | 2WL |
| BZT52B20S | 200 | 20 | 19.6 | 20.4 | 5 | 55 | 225 | 1 | 0.1 | 14 | 0.9 | 10 | 2WM |
| BZT52C2V4S | 200 | 2.4 | 2.2 | 2.6 | 5 | 100 | 600 | 1 | 50 | 1 | 0.9 | 10 | WX |

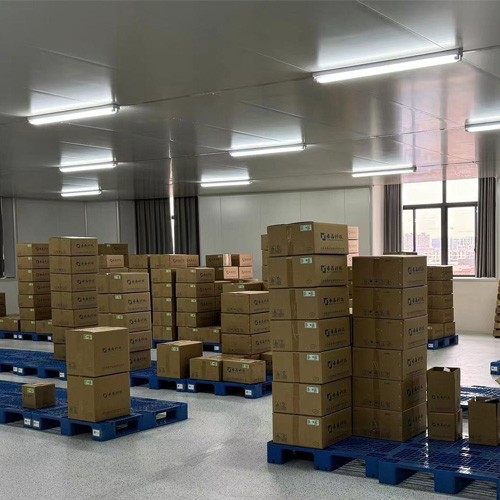

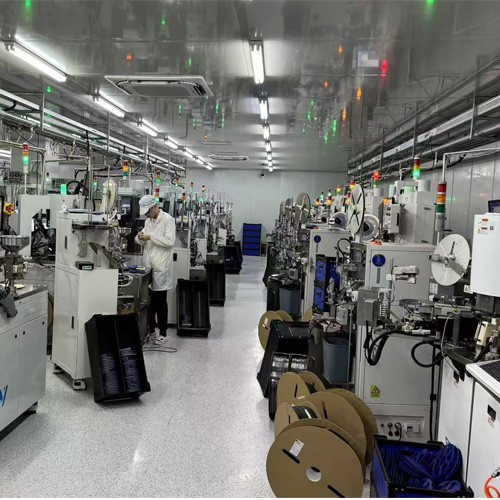

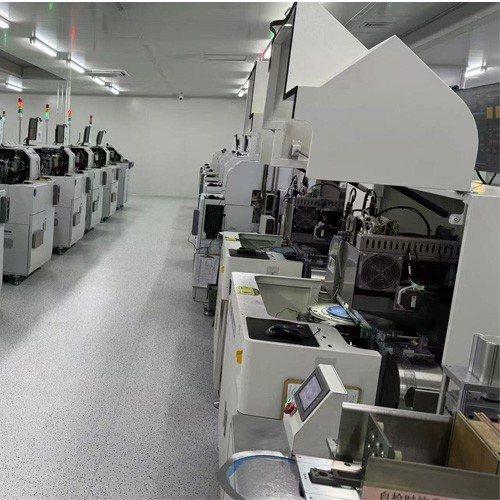

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
