Home Products SOD-123 SOD-123 Diode SOD-123 Diode Part 4
| Model | PD | VR | IFM | IO | IR | VF | trr | MARKING | |||
| (mW) | (V) | IR(µA) | (mA) | (mA) | (µA） | VR(V) | (V) | IF(mA) | (ns) | ||
| RB160M-30 | 450 | 30 | 100 | 1000 | 50 | 30 | 0.48 | 1000 | 73 | ||
| RB160M-40 | 350 | 40 | 100 | 1000 | 30 | 40 | 0.51 | 1000 | 74 | ||
| RB160M-60 | 350 | 60 | 100 | 1000 | 30 | 60 | 0.58 | 1000 | 76 | ||
| SD101AW | 400 | 60 | 10 | 15 | 0.2 | 50 | 1 | 15 | 1 | S1 | |
| SD101BW | 400 | 50 | 10 | 15 | 0.2 | 40 | 0.95 | 15 | 1 | S2 | |
| SD101CW | 400 | 40 | 10 | 15 | 0.2 | 30 | 0.9 | 15 | 1 | S3 | |
| SD103AW | 400 | 40 | 100 | 350 | 5 | 30 | 0.6 | 200 | 10 | S4 | |
| SD103BW | 400 | 30 | 100 | 350 | 5 | 20 | 0.6 | 200 | 10 | S5 | |
| SD103CW | 400 | 20 | 100 | 350 | 5 | 10 | 0.6 | 200 | 10 | S6 | |

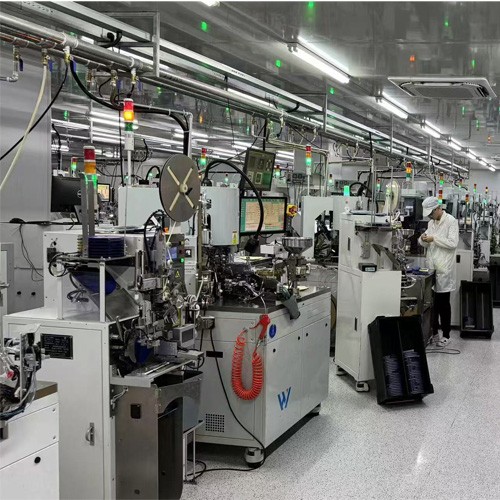

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
