Home Products SOD-323 SOD-323 Zener Diode SOD-323 Zener Diode Part 3
| Type | PD | Zener Voltage Rage | Maximun Zener Impedance | Maximun Reverse Current | Forward Voltage | MARKING | |||||||
| VZ@IZT | IZT | ZZT@IZT | ZZK@IZK | IZK | IR | VR | VF | IF | |||||
| (mW) | Nom(V) | Min(V) | Max(V) | (mA) | (Ω) | (Ω) | (mA) | (µA) | (V) | (V) | (mA) | ||
| BZT52C16S | 200 | 16 | 15.3 | 17.1 | 5 | 40 | 200 | 1 | 0.1 | 11.2 | 0.9 | 10 | WK |
| BZT52C18S | 200 | 18 | 16.8 | 19.1 | 5 | 45 | 225 | 1 | 0.1 | 12.6 | 0.9 | 10 | WL |
| BZT52C20S | 200 | 20 | 18.8 | 21.2 | 5 | 55 | 225 | 1 | 0.1 | 14 | 0.9 | 10 | WM |
| BZT52C22S | 200 | 22 | 20.8 | 23.3 | 5 | 55 | 250 | 1 | 0.1 | 15.4 | 0.9 | 10 | WN |
| BZT52C24S | 200 | 24 | 22.8 | 25.6 | 5 | 70 | 250 | 1 | 0.1 | 16.8 | 0.9 | 10 | WO |
| BZT52C27S | 200 | 27 | 25.1 | 28.9 | 2 | 80 | 300 | 0.5 | 0.1 | 18.9 | 0.9 | 10 | WP |
| BZT52C30S | 200 | 30 | 28 | 32 | 2 | 80 | 300 | 0.5 | 0.1 | 21 | 0.9 | 10 | WQ |
| BZT52C33S | 200 | 33 | 31 | 35 | 2 | 80 | 325 | 0.5 | 0.1 | 23.1 | 0.9 | 10 | WR |
| BZT52C36S | 200 | 36 | 34 | 38 | 2 | 90 | 350 | 0.5 | 0.1 | 25.2 | 0.9 | 10 | WS |
| BZT52C39S | 200 | 39 | 37 | 41 | 2 | 130 | 350 | 0.5 | 0.1 | 27.3 | 0.9 | 10 | WT |

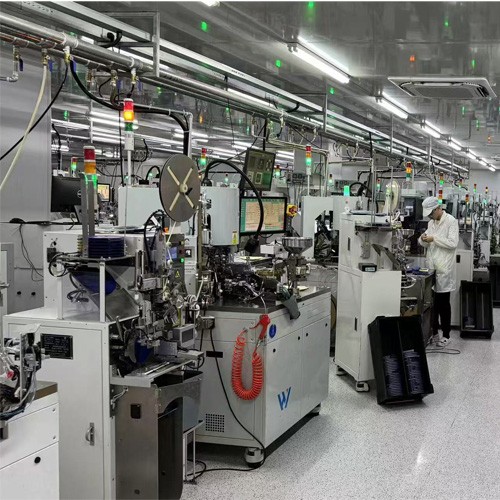

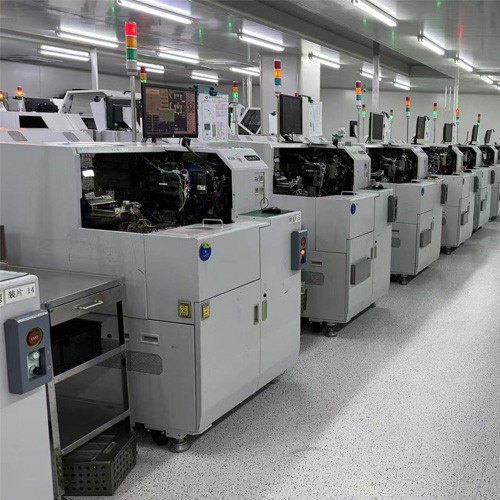

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
