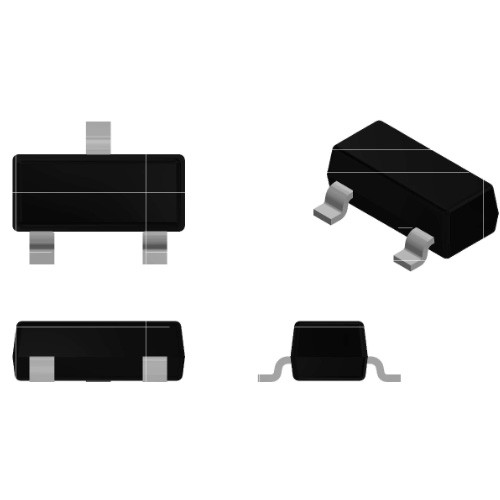

| Part Number | VIN min | VIN max | VOUT | IOUT | IQ | Vdrop | PSRR@1KHZ | Accuracy | Package |
| (V) | (V) | (V) | (mA) | (μA) | (mV) | (dB) | % | ||
| CJ6205A12N | 2 | 6 | 1.2 | 500 | 50 | 150 | 75 | 2 | SOT-23 |
| CJ6205A15N | 2 | 6 | 1.5 | 500 | 50 | 150 | 75 | 2 | SOT-23 |
| CJ6205A18N | 2 | 6 | 1.8 | 500 | 50 | 150 | 75 | 2 | SOT-23 |
| CJ6205A12M | 2 | 6 | 1.2 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A15M | 2 | 6 | 1.5 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A18M | 2 | 6 | 1.8 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A25M | 2 | 6 | 2.5 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A28M | 2 | 6 | 2.8 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A30M | 2 | 6 | 3 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A33M | 2 | 6 | 3.3 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |
| CJ6205A50M | 2 | 6 | 5 | 500 | 50 | 150 | 75 | 2 | SOT-23-3L |

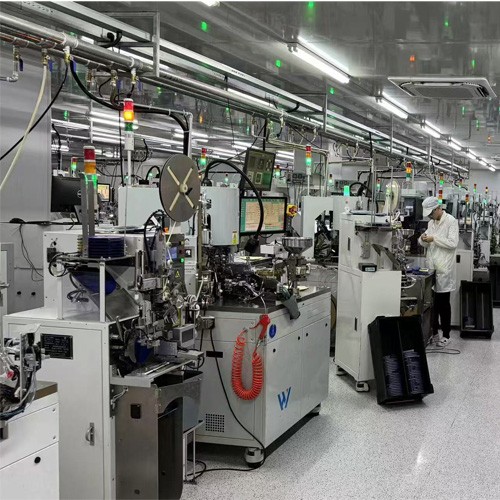

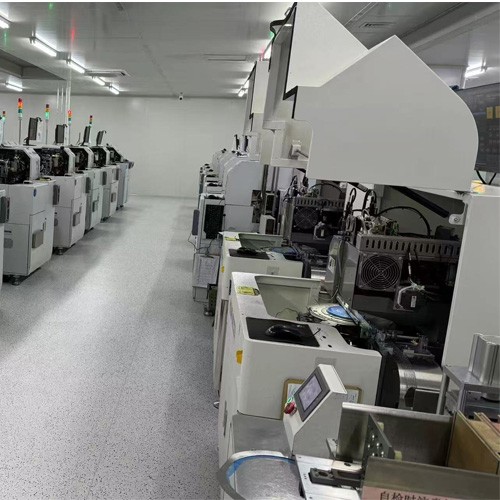

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
