Home Products SOT-23 SOT-23 Diode SOT-23 Diode Part 4
| Type | PD | VR | IO | IR | VF | trr | MARKING | |||
| (mW) | (V) | IR(µA) | (mA) | (µA) | VR(V) | (V) | IF(mA) | (ns) | ||
| MMBD4148 | 350 | 75 | 100 | 150 | 2.5 | 75 | 1.25 | 150 | 4 | KA2 |
| MMDB4148A | 350 | 100 | 100 | 200 | 5 | 75 | 1 | 10 | 4 | 5H |
| MMBD4148CA | 350 | 100 | 100 | 200 | 5 | 75 | 1 | 10 | 4 | D6 |
| MMBD4148CC | 350 | 100 | 100 | 200 | 5 | 75 | 1 | 10 | 4 | D5 |
| MMBD4148SE | 350 | 100 | 100 | 200 | 5 | 75 | 1 | 10 | 4 | D4 |
| MMBD4448 | 350 | 75 | 10 | 250 | 2.5 | 75 | 1.25 | 150 | 4 | KA3 |
| MMBD7000 | 225 | 100 | 100 | 200 | 3 | 100 | 1.1 | 100 | 4 | M5C |
| MMBD914 | 350 | 100 | 100 | 300 | 1 | 75 | 1.25 | 150 | 4 | 5D |
| RB400D | 250 | 40 | 100 | 500 | 50 | 30 | 0.55 | 500 | D3A | |
| RB411D | 200 | 20 | 100 | 500 | 30 | 10 | 0.5 | 500 | D3E | |
| RB421D | 250 | 40 | 100 | 100 | 30 | 10 | 0.55 | 100 | D3C | |
| RB425D | 250 | 40 | 100 | 100 | 30 | 10 | 0.55 | 100 | 6+ | D3L |
| RB491D | 200 | 20 | 1000 | 1000 | 200 | 20 | 0.47 | 1000 | D2E | |
| RB495D | 250 | 25 | 100 | 400 | 70 | 25 | 0.5 | 200 | D3Q | |

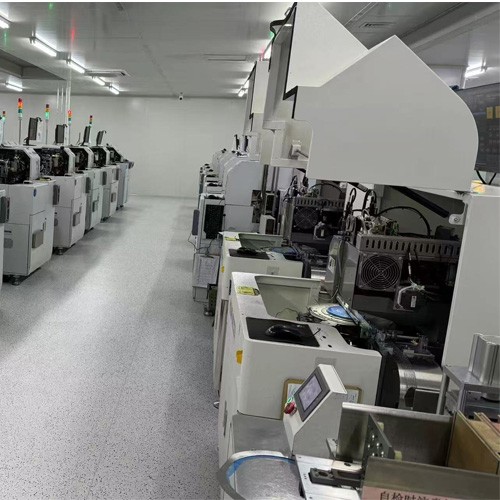

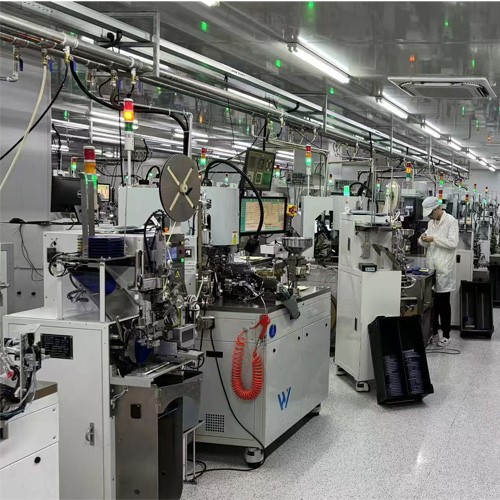

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
