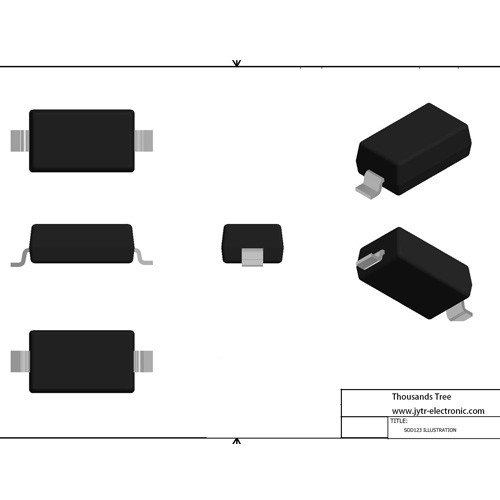

Home Products SOD-123 Diode SOD-123 Diode Part 1
| Model | PD | VR | IFM | IO | IR | VF | trr | MARKING | |||
| (mW) | (V) | IR(µA) | (mA) | (mA) | (µA） | VR(V) | (V) | IF(mA) | (ns) | ||
| 1N4148W | 350 | 75 | 10 | 300 | 150 | 1 | 75 | 1.25 | 150 | 4 | T4 |
| 1N4448W | 500 | 75 | 10 | 500 | 250 | 2.5 | 75 | 1.25 | 150 | 4 | T5 |
| B0520LW | 500 | 20 | 250 | 500 | 250 | 20 | 0.39 | 500 | SD | ||
| B0530W | 500 | 30 | 130 | 500 | 130 | 30 | 0.43 | 500 | SE | ||
| B0540W | 500 | 40 | 20 | 500 | 20 | 40 | 0.62 | 1000 | SF | ||
| B1040W | 350 | 40 | 1000 | 1000 | 50 | 20 | 0.55 | 700 | SZ | ||
| B2020W | 300 | 20 | 1000 | 2000 | 100 | 20 | 0.55 | 2000 | SH | ||
| B25817W | 500 | 20 | 1000 | 1000 | 1000 | 20 | 0.42 | 3000 | SJ | ||
| B5818W | 500 | 30 | 1000 | 1000 | 1000 | 30 | 0.875 | 3000 | SK | ||
| B5819W | 500 | 40 | 1000 | 1000 | 1000 | 40 | 0.9 | 3000 | SL | ||
