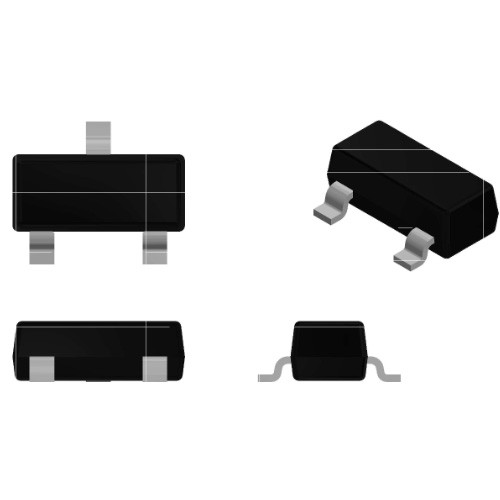

Home Products SOT-23 SOD-123 Darlington SOT-23 Darlington Transistor
| Type | Polar | PCM | IC | BVCBO | BVCEO | BVEBO | hFE | VCEsat | fT | |||||
| (mW) | (mA) | (V) | (V) | (V) | Min | Max | VCE(V) | IC(mA) | (V) | IC(mA) | IB(mA) | (MHz) | ||
| 2SD2142 | NPN | 200 | 300 | 40 | 32 | 12 | 5000 | 3 | 100 | 1.4 | 200 | 0.2 | 200+ | |
| BCV27 | NPN | 300 | 500 | 40 | 30 | 10 | 20000 | 5 | 100 | 1 | 100 | 0.1 | 170+ | |
| BCV47 | NPN | 300 | 500 | 80 | 60 | 10 | 10000 | 5 | 100 | 1 | 100 | 0.1 | 170+ | |
| MMBTA13 | NPN | 300 | 300 | 30 | 30 | 10 | 10000 | 5 | 100 | 1.5 | 100 | 0.1 | 125 | |
| MMBTA14 | NPN | 300 | 300 | 30 | 30 | 10 | 20000 | 5 | 100 | 1.5 | 100 | 0.1 | 125 | |
| MMBTA28 | NPN | 200 | 500 | 80 | 80 | 12 | 10000 | 5 | 10 | 1.5 | 10 | 0.01 | 125 | |
| MMBTA64 | NPN | 300 | 800 | 30 | 30 | 10 | 20000 | 5 | 10 | 1.5 | 100 | 0.01 | 125 | |

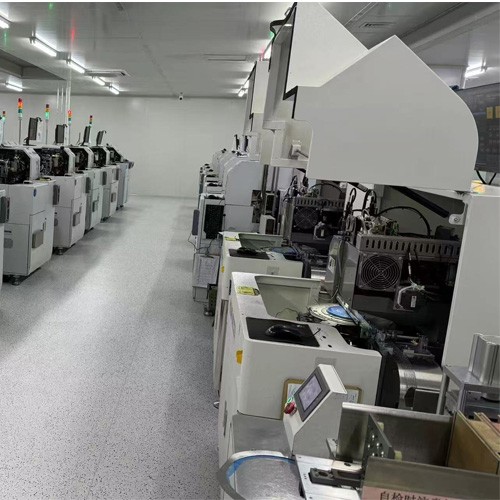

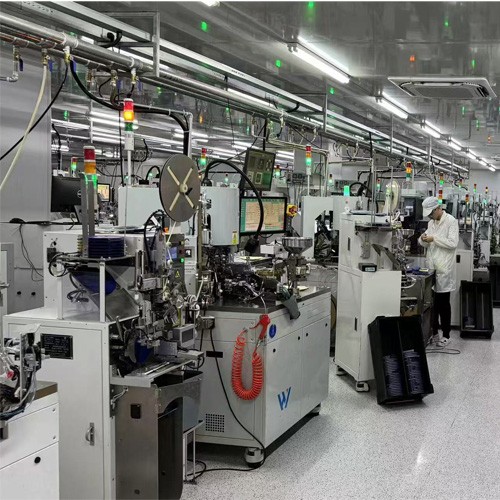

Thousands Tree established in 2008 with workshops more than 10,000m².We have technology of SOT-23,SOD-123,SOD-323,SOT-23-3,5,6L and DFN1006,DFN1*1-4L packing.
